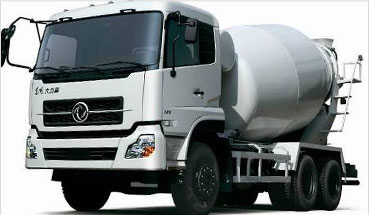

6X4 vehicle. With professional concrete mixer chassis, the vehicle has a low center of gravity, strong power and high reliability.

Model: DFL5251GJBA1-T15-000-020J

Vehicle description: 6 × 4 drive cement mixer chassis, D310 Flat top of a row of semi-standard cab, Dongfeng dCi340-30 engines, electronic control system for EDC7, wheelbase 3650 +1350 mm, after the pre-940mm wide and 860mm wide frame, electric heating (pre - hot-plug) Cold-start device, the main fuel tank 200L steel, electronic accelerator pedals, exhaust port out (side-blown), Φ430mm pull-type diaphragm spring clutch, Shaanxi teeth 8 file 8JS130T-B transmission, the first stall speed ratio 10.31 The most high-end for direct file, 7-ton front axle, 13 tons of double rear axle, the main reduction ratio 4.44, inter-wheel differential lock-free, full-power PTO (on the engine PTO), frame rails of section 300 × 90 × (8 +8) mm, leaf spring pieces a few 9 / 13 ,11.00-20 bias tires, manually adjust the arm, no ABS, after the semi-floating cab mount, hydraulic machinery turning, colorless pre-laminated windshield, electric glass lifts, moving in lock, the channel-type instrument panels, install air conditioning. A navigation system, there is a remote throttle devices and PTO interface, PTO 4-speed, with a switch. ZF Steering.

We have 13 types of this product, your inquiry for details is appreciated:
