Technical parameters:

Ambient temperature: -40 ℃ ~ +55 ℃

Relative Humidity: 30 ~ 90%

Nominal flow: 100L/min

Measurement accuracy: ± 0.3%

Repeatability Error: ≤ 0.15%

Pump inlet vacuum: ≥ 54kPa

Pump out the oil pressure: ≤ 0.3MPa

User Access Power: 380V 50Hz (required users can order 220V)

Noise: ≤ 80dB (A sound level)

Price range: 0.01 ~ 99.99 Yuan / liter

Single count range: 0.01 ~ 9999.99 liters or meta

Total count range: 0.01 ~ 9999999999.99 liters or yuan

Explosion-proof mark: Exdm Ⅱ AT3 gasoline additive

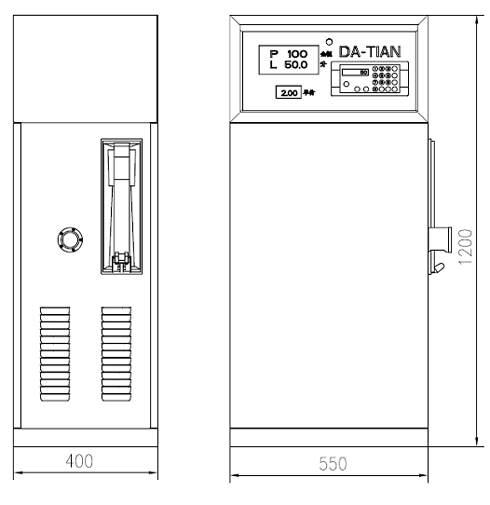

Product Structure diagram:
